PRODUCT OF THE WEEK: Epiq’s Matchstiq V40 SDR platform

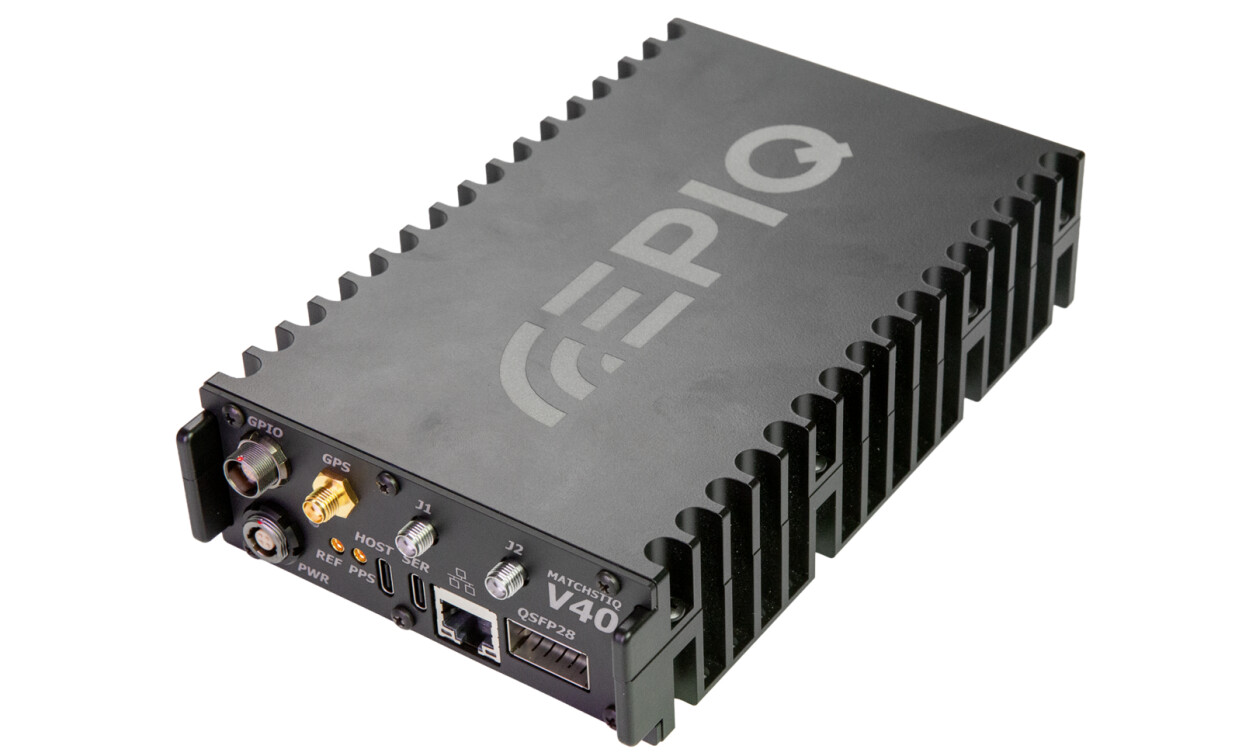

This week’s product, the Epiq Solutions Matchstiq V40, is a software-defined radio (SDR) and signal-processing platform that combines an Analog Devices AD9084 MxFE RF front end with an AMD Versal Adaptive SoC [system-on-chip]. Together they form a low-latency platform with as much as 2 GHz of instantaneous bandwidth, large numbers of definable digital down-converters (DDCs) and digital up-converters (DUCs), fast frequency hopping, and an extremely fast sweep speed.

The Machstiq V40 is targeted at applications with stringent size, weight, and power (SWaP) requirements like uncrewed system (UxS) payloads, crewed airborne systems, antijamming systems, electronic intelligence (ELINT), special communications, and more.

The V40 supports three operational modes:

Standalone with customer developed software applications and FPGA IP to enable advanced processing;
as a 100 GbE VITA 49 streaming device;
or in a combination of both.

Other features include dynamic reconfiguration, full-bandwidth signal monitoring. and snapshot.

Key Features

9 GHz direct sampling radio
2 GHz of instantaneous bandwidth for processing on receive and transmit
Single physical channel assignable to large numbers of digital down-converter/digital up-converter channels within 2 GHz window
Low-latency digital architecture
VITA 49 streaming on 100 GbE
Power: 40 W
Open architecture software environment
Size: 7.02 x 4.34 x 1.635 inches (178 x 110 x 42 mm)
Weight: 2.2 lb. (10 kg)
RF channel bandwidth: Up to 2 GHz
Frequency range: 1 MHz to 9 GHz
Sample rate: 2.5 GS/s, maximum contiguous payload, at 16 bits
Environmental options:
- Storage: -40 °C to 85 °C
- Operation: -40 °C to 70 °C

For more information, visit the Matchstiq V40 product page, company’s website, or follow the links below.
