Industrial DRAM for Extreme Environments

Eletter Product
Industrial DRAM for Extreme Environments

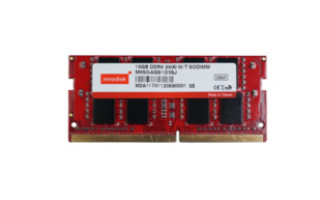

Designed for industrial systems, Innodisk’s Wide Temperature DDR4-2400 SODIMM modules are best suited for applications that operates in extreme temperatures and harsh environments. All of Innodisk’s DRAM modules use industrial-grade components and comes with 30u” gold finger connectors to ensure that the memory maintains its high-quality signal, even at temperatures as low as -40°C or as high as 105°C. This durable module also features an optional conformal coating. This HumiSeal acrylic and silicone coating material with its uniform thickness range of 0.03mm˜ 0.13 mm, is water, corrosion, acid, and base resistant protecting the module from dust, moisture, electric insulation, chemical contaminants, and is in compliance with IPC-A-610 standards. Other features include:


  • JEDEC standard 1.2V (1.26V~1.14V) Power Supply
  • JEDEC Standard 260-pin Dual In-Line Memory Module
  • 8 bit pre-fetch
  • On Die Termination with ODT pin
  • Bi-directional Differential Data Strobe
  • Average Refresh Period 7.8us lower then TCASE 85°C, 3.9us at 85°C < TCASE ≤ 95°C
  • Gold Finger 30μ"
  • RoHS Compliant
