Rugged military display features three LCD panels
ProductNovember 17, 2015

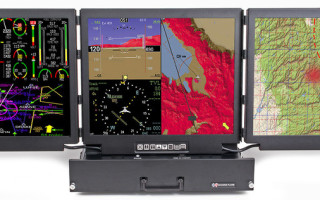

With a series of panels, the TFX1-19 from Chassis Plans is a rugged military-grade 2U rackmount LCD panel display. It features three 19-inch TFT LCD displays with per-panel resolution of 1,280 by 1,024. Chassis Plans officials offer display options that include a bonded anti-reflective gla...
With a series of panels, the TFX1-19 from Chassis Plans is a rugged military-grade 2U rackmount LCD panel display. It features three 19-inch TFT LCD displays with per-panel resolution of 1,280 by 1,024. Chassis Plans officials offer display options that include a bonded anti-reflective glass cover and a bonded ITO EMI filter.
The system has been tested or designed to meet the MIL-STD-810G specifications. The LCD standard display temperature ranges from 0 to 50 °C while the high temperature display ranges from -20 to +70° C while operational. Electrical systems are specified for long-term reliability and multiyear program availability.
It also features a RGV(VGA), DVI-D, and HDMI inputs. The body is made of 5052-H32 aluminum alloys with milled front panel, while the enclosure is stainless-steel hardware with self-locking fasteners. The TFX1-19 is manufactured in the USA.
