Three rugged displays in one chassis for extreme environments

Looking to meet needs for larger screen space in a reduced rack-mount form factor, Chassis Plans designers in San Diego created the TFX-9 trifold rack-mount LCD monitor that provides enhanced situational awareness via its three screens. The rugged monitor comes in a 2U form factor with wid...

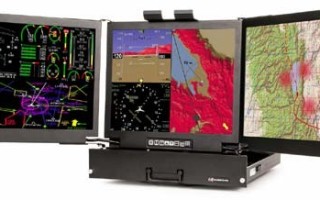

Looking to meet needs for larger screen space in a reduced rack-mount form factor, Chassis Plans designers in San Diego created the TFX-9 trifold rack-mount LCD monitor that provides enhanced situational awareness via its three screens. The rugged monitor comes in a 2U form factor with wider environmental tolerances than previous models. The three 19-inch TFX LCD displays have a per-panel resolution of 1,280 x 1,024. The displays provide a large working space and have gas strut assisted opening and lockdown. The left/right monitor positions are adjustable Two models of the TFX are available – the standard TFX-19B, and the TFX-19G. Both models meet MIL-STD-810 specifications for altitude, high temperature, low temperature, humidity, transport vibration, and bench handling shock. The TFX-19G, which is a specialty model, is designed for use in extreme outdoor environments via its brightness – 1,500 cd/m2 – and its extreme temperature operating range: 20 °C to 70 °C. It also has optional Electromagnetic Interference (EMI) protection and safety glass.
