Rugged 19-inch display for harsh environments

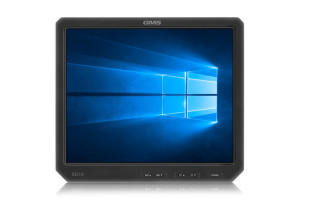

The RuggedView SD19-1002 by General Micro Systems integrates a 19-inch diagonal display with a fourth-generation Core i7 processor. The workstation is contained in a ruggedized, conduction-cooled, fully sealed system with an ultrabright display and Night Vision Imaging System (NVIS). The R...

The RuggedView SD19-1002 by General Micro Systems integrates a 19-inch diagonal display with a fourth-generation Core i7 processor. The workstation is contained in a ruggedized, conduction-cooled, fully sealed system with an ultrabright display and Night Vision Imaging System (NVIS). The RuggedView SD19-1002 is targeted for applications in harsh environments, while using interconnects to provide a sealed smart-display system that is less than 3.25 inches thick.

The RuggedView supports the latest Intel Haswell Quad Core i7 processor with hyperthreading for a total of eight logical cores, each operating up to 2.4 GHz. The CPU is coupled with up to 32 GB of RAM organized in two banks that support error correcting code (ECC). The ECC RAM provides two-bit error detection and one-bit error correction and supports up to 1,600 mega-transfers per second (MTS) between CPU and memory. The SD19-1002 is offered with several screen options in 5:4 format, with or without touchscreen and bezel keys. The SD19-1002 supports standard definition of 1,280 by 1,024 resolution in standard format. It is viewable with up to 700 nits (units of visible light intensity) of brightness and supports antireflective (AR) and antiglare (AG) coating. The display also supports NVIS for applications where night vision glasses are used to reduce stress on the viewer.
