TTE Filters, a designer and manufacturer of RF and microwave filters for high performance applications announces that its Instec Filters brand ML61 EMI/RFI filters are now qualified to the US Department of Defense DLA Land and Maritime’s MIL-PRF-28861 military standard. This series will be featured at the 2021 International Microwave Symposium in Atlanta on June 8-9, booth #1129.
This series can now be used in military electronic systems to suppress and reduce broadband radio frequency interference which would otherwise compromise system performance. These high performance systems are utilized in military communication devices, oscillators, attenuators and low noise amplifiers.
The electrical characteristic ranges of these lowpass, feed-through, C-circuit, solder-in ML61 filters include Rated Voltage from 50Vdc to 200Vdc, Capacitance from 10pF to 15,000pF and Minimum Insertion Loss from 3dB to 60dB. The Operating Temperature is -55°C to +125°C.

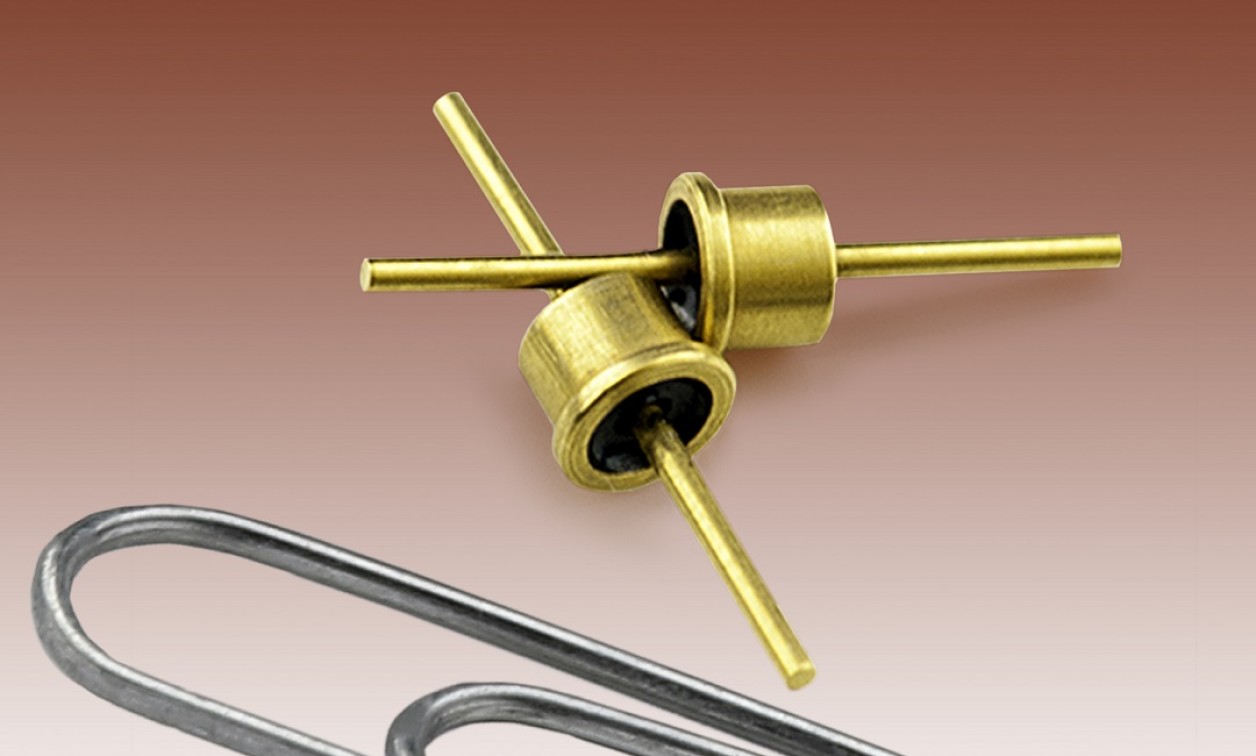

The parts in this ML61 series are hermetically glass sealed at one end and epoxied at the other end, with the location of the glass seal dependent on the particular configuration. In conformance with the MilSpec, the company can provide these filters in Configuration A (ML610) or Configuration B (ML611). Please refer to the MIL-PRF-28861/12H standard for more information. The main body of each part in this series measures 0.128in. (3.25mm) in diameter while the main body height is 0.110in. (2.79mm) and the overall tip-to-tip length is 0.625in. (15.88mm). More technical information is provided in the ML61 datasheet at TTE’s website. Helpful links are provided below.
The MilSpec qualification, specifically MIL-PRF-28861/12H Class B, required rigorous electrical, thermal and mechanical testing including solderability, moisture resistance, solvent resistance, corrosion resistance, physical shock, thermal shock, vibration and life testing of this series. Testing was performed at the in-house environmental testing lab of sister company Gowanda Electronics. This lab is Defense Logistics Agency Land and Maritime approved (in support of internal product qualifications).
TTE welcomes inquiries regarding the upscreening of additional filters for applications in defense, military and space communities. The company also supports custom designs with extensive experience, proprietary manufacturing equipment, prototyping capabilities and testing facilities.
The ML61 series is manufactured, marked and sold under the Instec Filters name; Instec is now part of TTE. For technical assistance, part pricing or other information please contact TTE at +1-716-532-2234 or [email protected].
